From variable fuels to controlled kiln-line use.

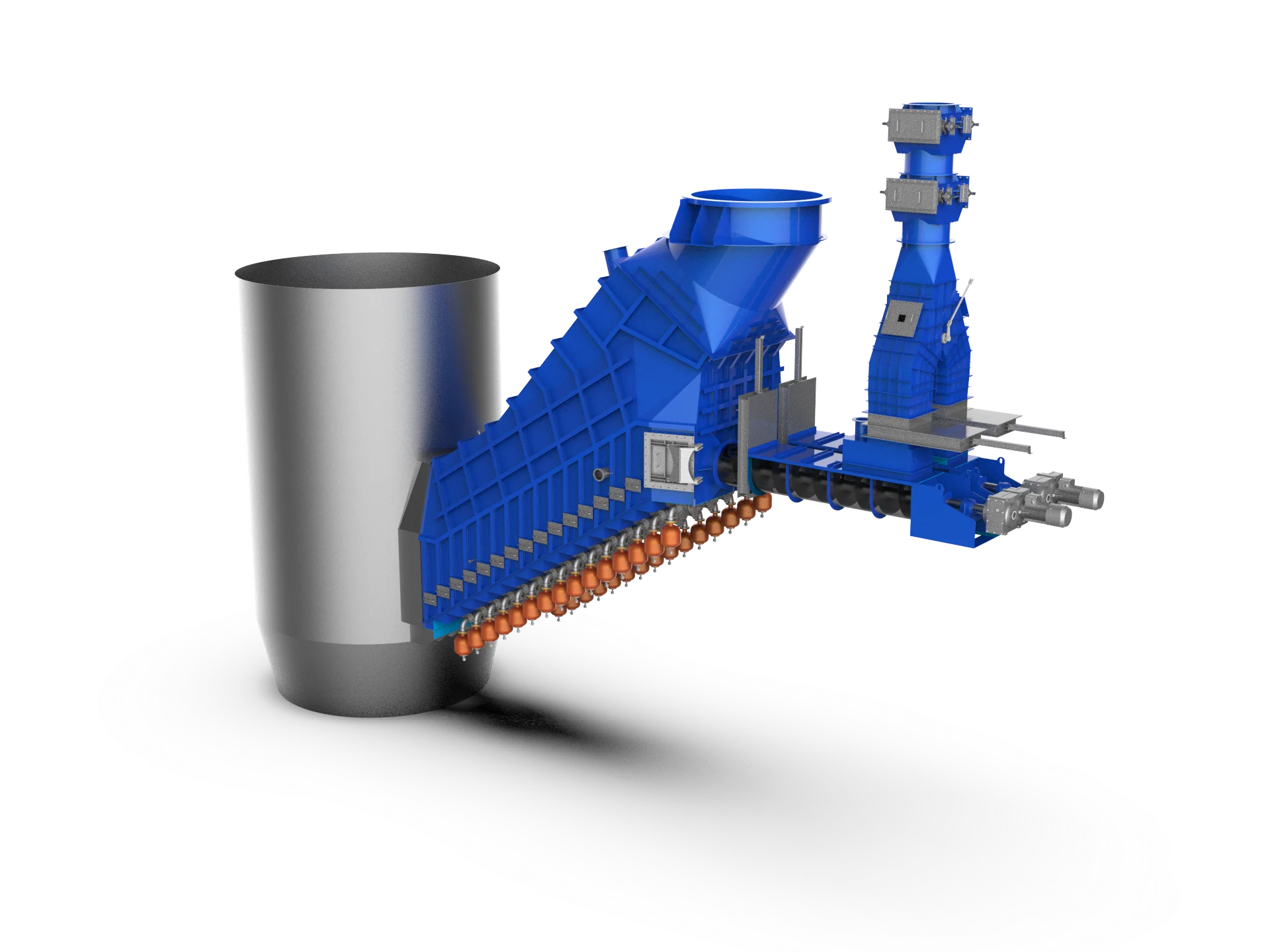

Stepped Incinerator
Thermal equipment for safe alternative fuel or waste combustion, heat release and harmless treatment support.
Product features
Wide fuel adaptability
Suitable for RDF, sludge, shredded rubber, biomass, waste textiles, municipal solid waste, and other alternative fuels, with wide adaptability to fuel particle size and moisture.
Complete combustion
The residence time of materials inside the furnace can be flexibly controlled to ensure sufficient combustion.
Simplified process
Simplifies material pretreatment, with a compact process layout and reduced installation workload.
Safe and environmentally friendly operation
No moving parts inside the furnace, supporting stable and reliable operation. When co-processed with the cement kiln, it supports lower carbon emissions.
Good economic performance
Low operating cost, with system power consumption of about 0.3–0.5 kWh/t. Low maintenance workload and reduced labor cost.
Application scenarios
Alternative fuel combustion in cement plants, power plants, and related industrial systems.
Delivery scope
Step grate furnace body, air cannons, material conveying and control system; partial equipment retrofit; spare parts supply; technical services.
Useful inputs

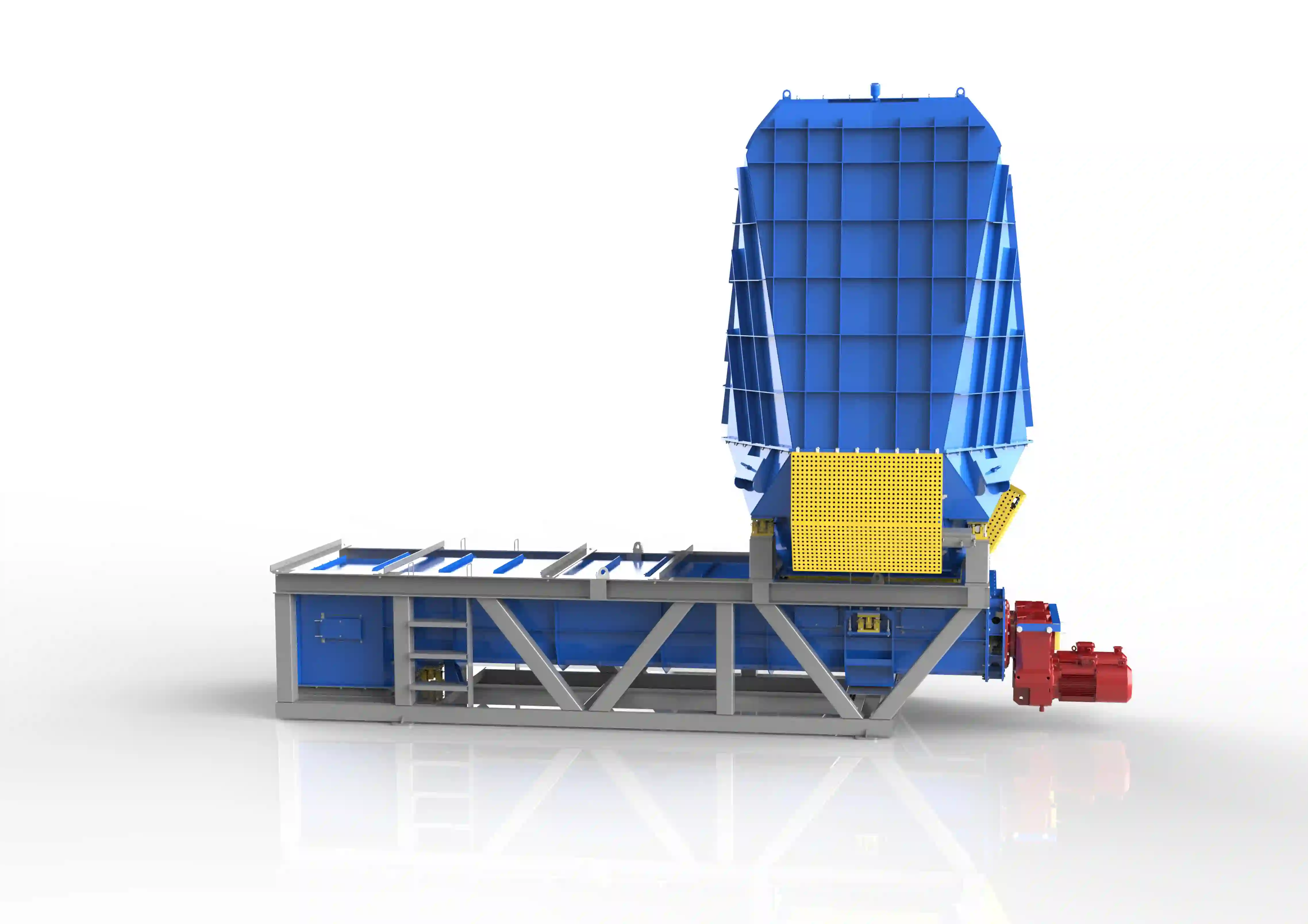

Weigher with Metered Feed Silo
Metering and feeding equipment for difficult weighing and conveying of alternative fuels and biomass materials.
Product features
High level of intelligent control
Uses VFD and servo control technology for automatic speed regulation, automatic arch breaking, automatic clearing of blocked material inside the screw feeder, intelligent fault detection, and automatic online calibration.
High metering accuracy
Feeding accuracy can reach ±1%.
Wide material adaptability
Suitable for RDF, biomass, waste textiles, municipal solid waste, and other materials in different forms.
Application scenarios
Alternative fuel metering in cement plants, power plants, and related industrial systems.
Delivery scope
Complete metering bin and control system; partial equipment optimization retrofit; spare parts supply; technical services.
Useful inputs

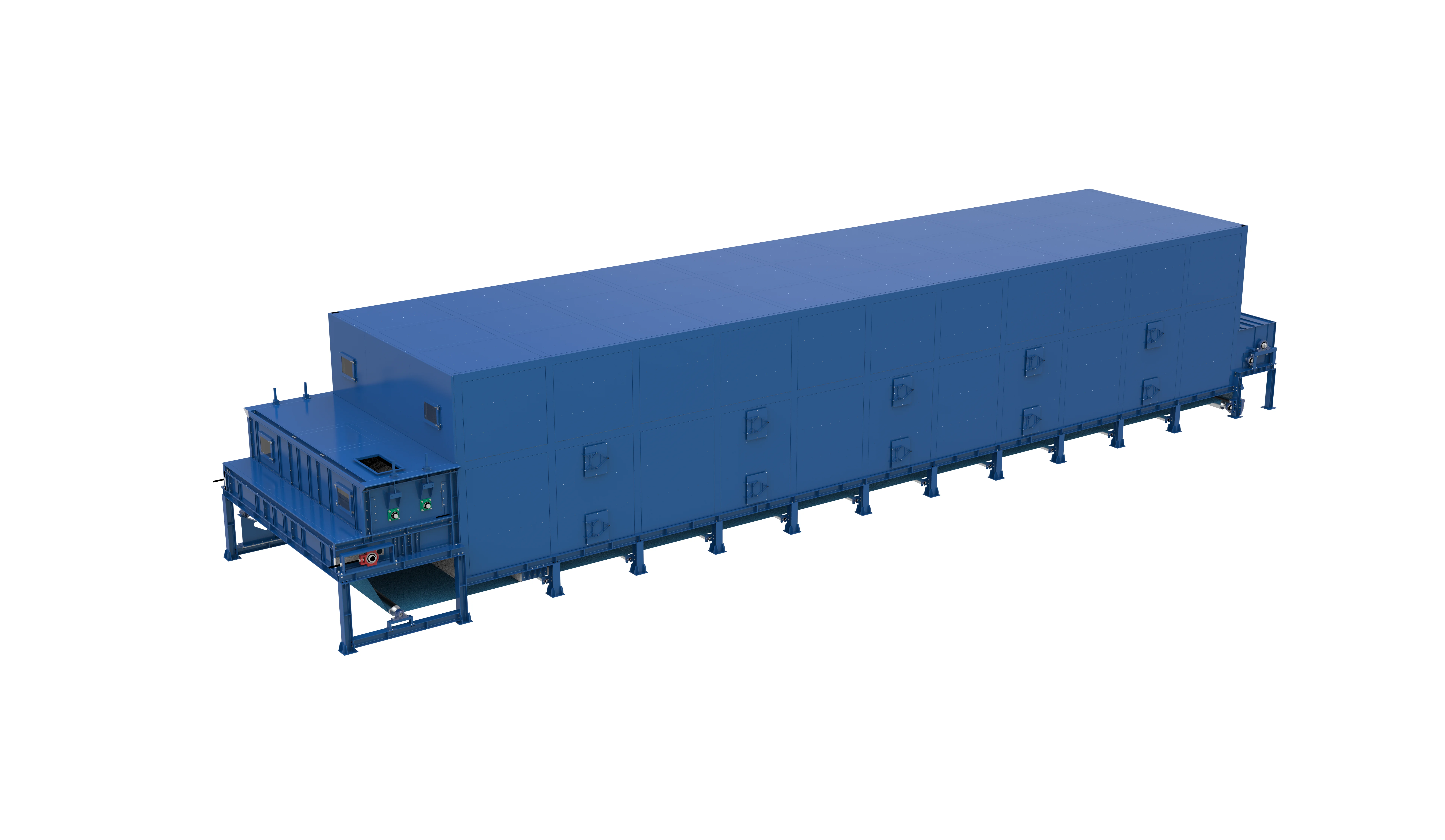

Belt Dryer
The belt dryer is used for drying in cement alternative fuel preparation, the wood-based panel industry, and solid waste treatment. It is suitable for reducing material moisture from 50% to 15%, with a drying capacity of 1–10 t/h.
Product features
- Uses waste gas heat to dry wet materials, recovering exhaust gas that would otherwise be discharged.
- Modular belt dryer design, suitable for production line expansion and drying different materials without major modification.
- Adjustable air volume, material residence time, and feeding rate for better drying performance.
- Can utilize waste gas from the Kiln Inlet and Kiln Outlet to reduce energy consumption.
- Hot air temperature: ≤120°C
Application scenarios
Sludge, biomass, RDF and other high-moisture alternative fuel pretreatment systems.
Delivery scope
- Material distribution system
- Mesh belt drive unit
- Anti-static drying mesh belt
- Mesh belt air blowing device
- Discharge screw conveyor
- Material turning device
- Mesh belt tracking correction device
- High-pressure mesh belt cleaning device, non-continuous operation
- Spray system
- Exhaust fan
