Prepare stable feed with reliable crushing solutions.

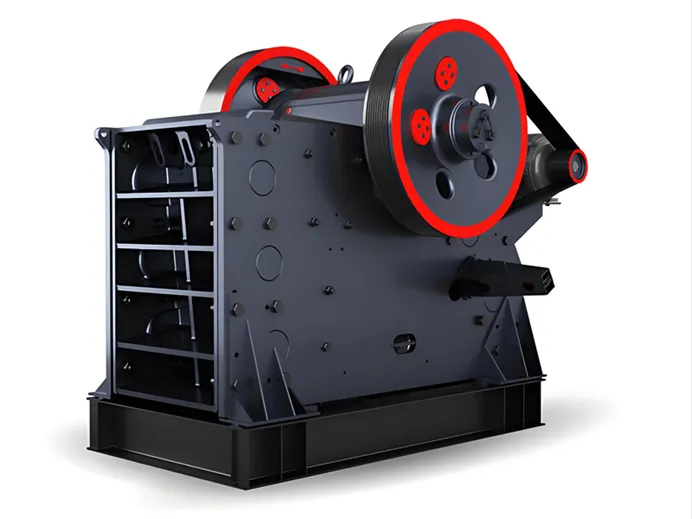

Jaw Crusher
Jaw crushers are used for primary crushing at the front end of a production line. They reduce large, hard raw materials into a manageable size and create stable conditions for downstream conveying, pre-homogenization, and secondary crushing.
Product features
- Large crushing ratio
- Uniform product particle size
- Simple structure, safe and reliable operation, and easy maintenance
Applicable Materials
- Various ores and rocks with compressive strength below 300 MPa
Performance Data
- Capacity: 0.5–625 t/h
- Maximum feed size: 1200 mm
Useful inputs

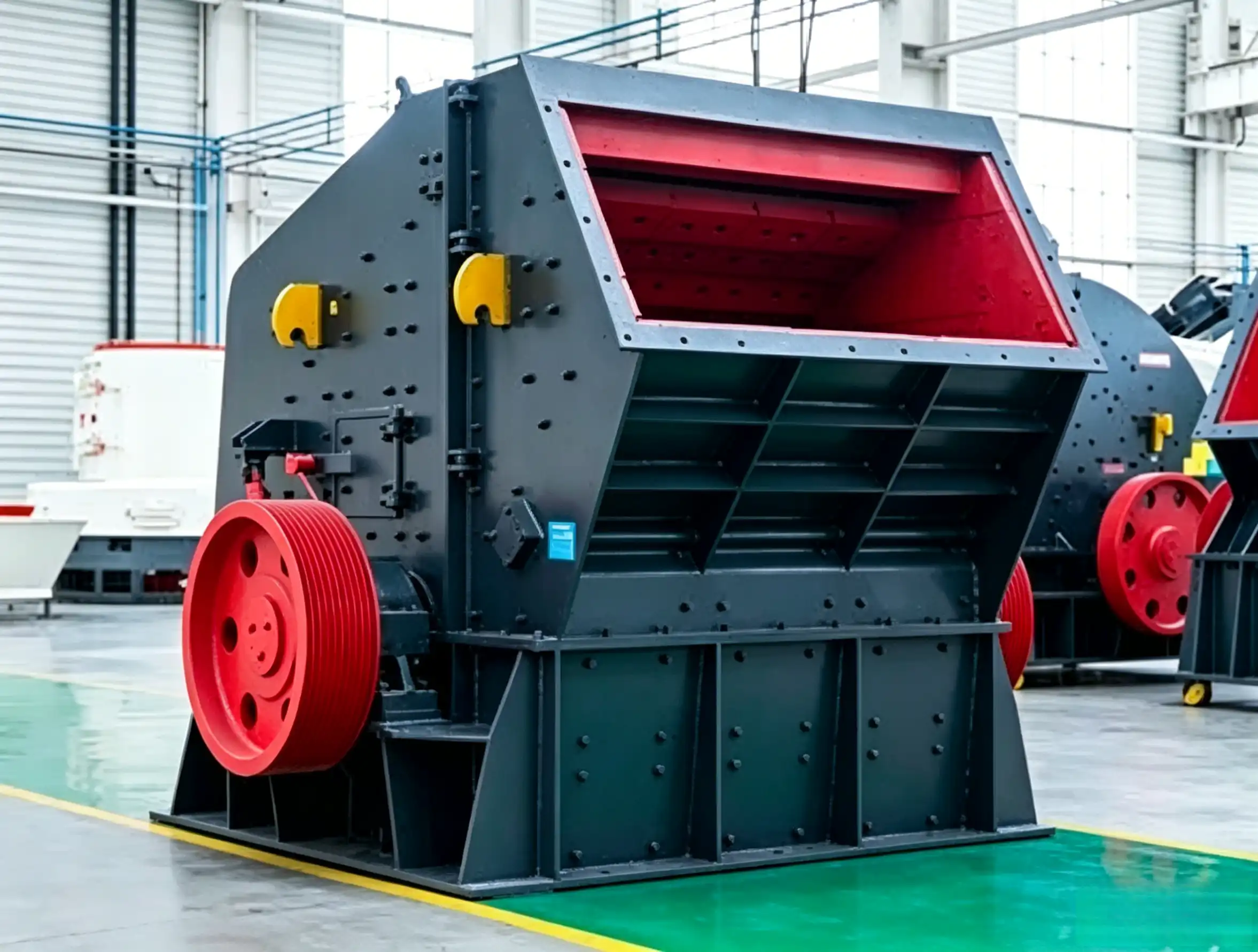

Impact Crusher
Impact crushers are used for secondary crushing and shaping of medium- and low-hardness materials. They help improve particle shape and size distribution for downstream handling or further grinding.
Product features
- Large crushing ratio, generally 30–40 and up to 150
- High crushing efficiency and low power consumption
- Uniform product particle size with less over-crushing
- Compact equipment size, light weight, simple structure, and easy maintenance
Applicable Materials
- Brittle, fibrous, and medium-hard or softer materials
- Especially suitable for crushing brittle materials
Performance Data
- Capacity: 100–800 t/h
- Maximum feed size: 1000 mm
- Discharge particle size: 20–80 mm
Useful inputs

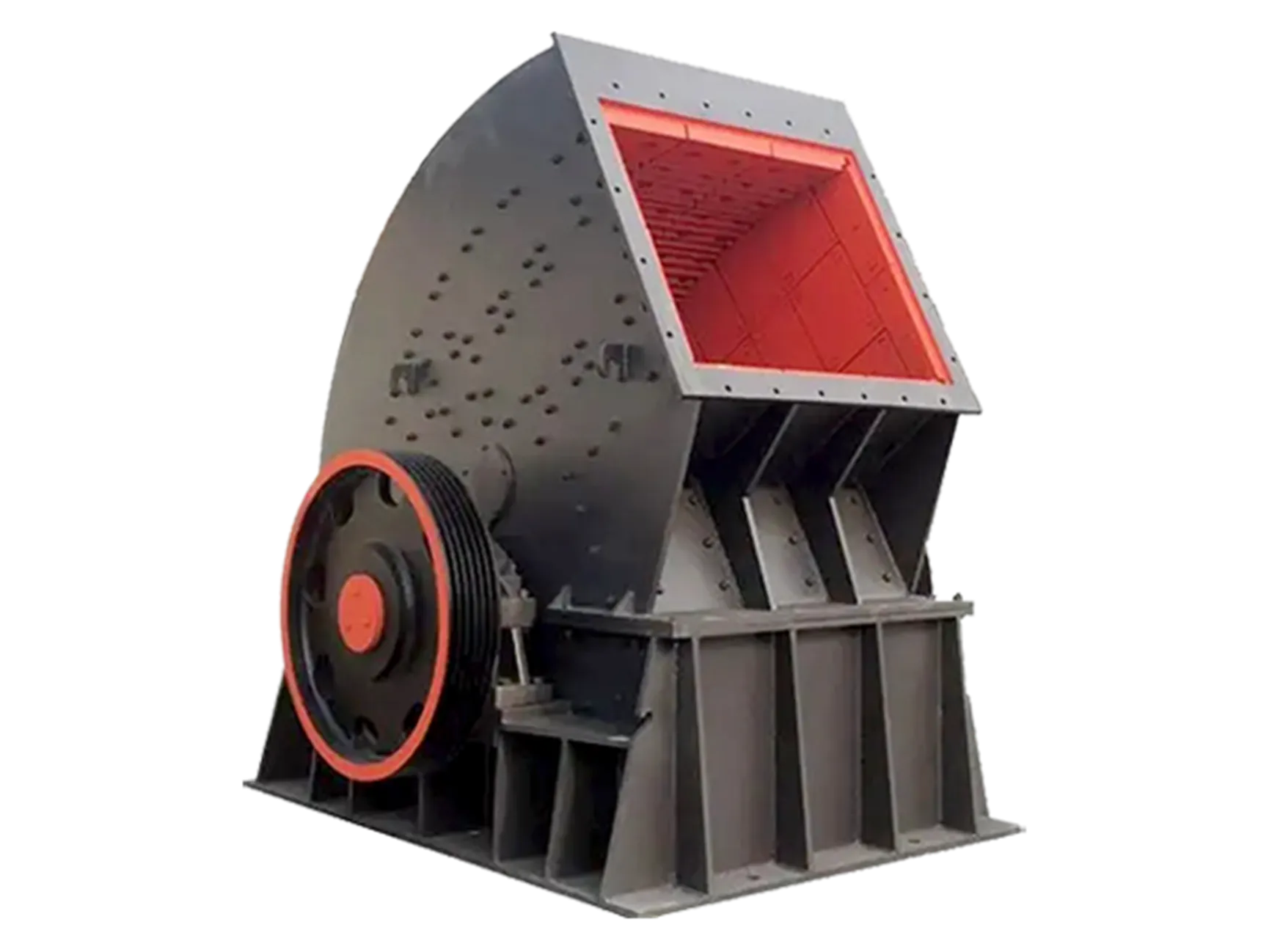

Hammer Crusher
Hammer crushers are used for crushing brittle and medium-hard materials. They provide a large crushing ratio with a simple process route and compact equipment layout.
Product features
- Large crushing ratio, generally 10–25 and up to 50
- High production capacity and uniform product particle size
- Less over-crushing and low energy consumption per unit product
- Simple structure, light equipment weight, and easy operation and maintenance
Applicable Materials
- Medium-hard ores
- Especially suitable for crushing ores with high clay or sticky soil content
Performance Data
- Capacity: 200–1900 t/h
- Maximum feed size: 1200 × 1400 × 1800 mm
- Discharge particle size: 25–75 mm
Useful inputs
