Dependable lime production starts with controlled calcination. SINOTECE supports kiln selection, fuel adaptation, product activity control and cleaner operation for stable lime plant performance.

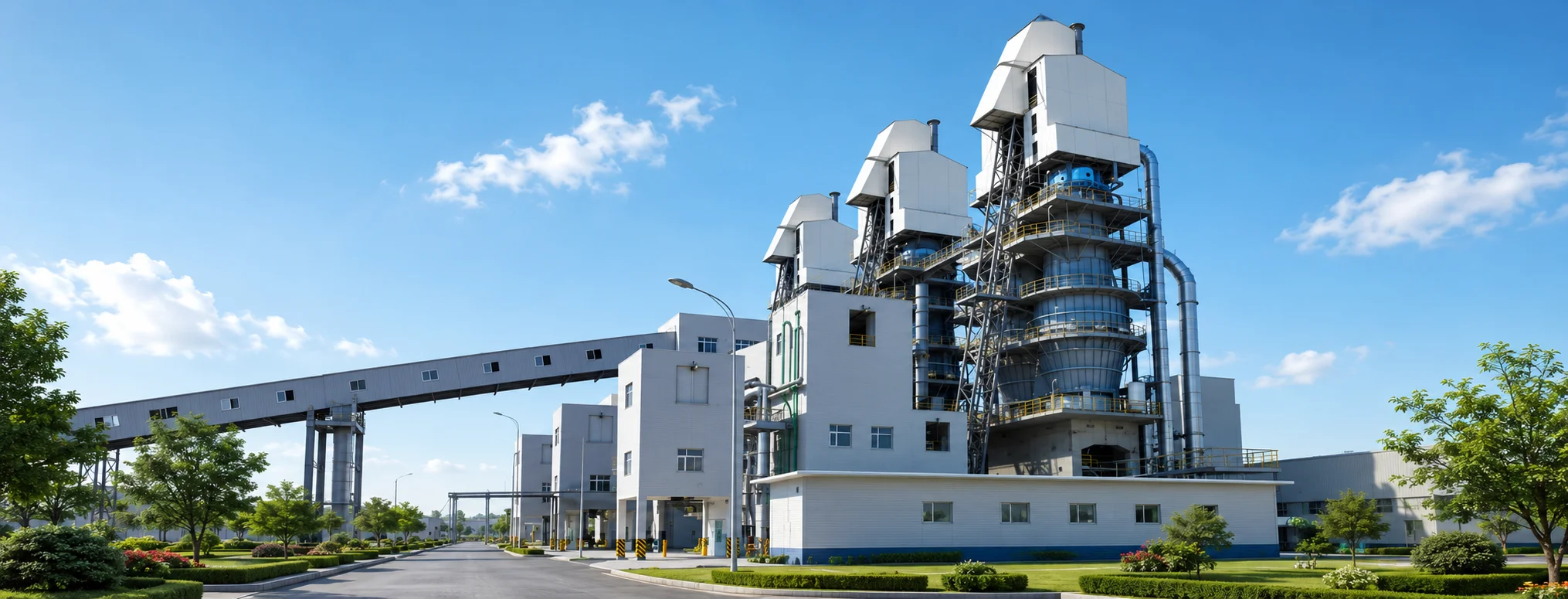

PFR Twin-Shaft Lime Kiln
The PFR twin-shaft lime kiln is centered on alternating regenerative heat exchange and stable combustion. It is suitable for lime projects with high requirements for product quality, energy consumption, operating stability, and environmental compliance. We provide integrated delivery from process design and packaged equipment to installation, commissioning, ramp-up, and stable operation support for both new and retrofit projects.
Line composition
- Raw material receiving and feeding
- PFR twin-shaft kiln calcination system
- Lime discharge, conveying and finished product storage
- Flue gas treatment and dust collection
- Electrical automation and central control
Core advantages
Maximum single-line capacity: 800 t/d
Heat consumption: ≤900 kcal/kg lime
Power consumption: ≤40 kWh/t-lime
Lime reactivity: ≥320 mL, up to 400 mL max. (4N HCl, 10 min titration)
Low heat consumption
Alternating regenerative heat recovery improves thermal utilization and helps control fuel cost.
High stability
Stable temperature field and lime discharge quality support higher-grade product production.
Environmentally friendly
Clear dust control organization makes emission compliance more achievable.
Maintenance-friendly operation
Centralized control and complete interlocks reduce unplanned downtime.
Applicable scenarios
Metallurgy, building materials, chemical industry, environmental treatment and other lime-consuming sectors.
Delivery scope
Process and multi-discipline engineering design, packaged equipment supply, installation, commissioning, ramp-up, compliance and O&M support, selected by project.
Useful inputs

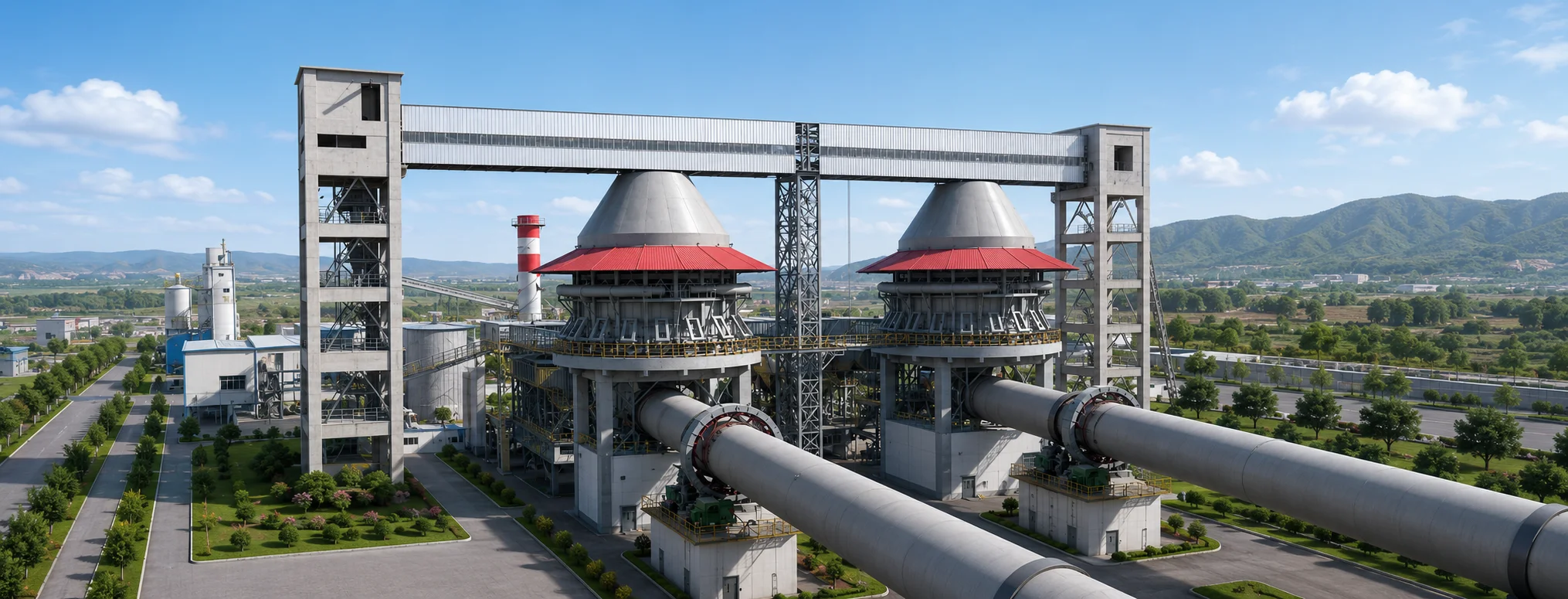

Lime Rotary Kiln
A rotary kiln lime line is characterized by continuous calcination and is suitable for projects requiring large capacity, continuous lime supply, and stable quality. The core of the line lies in raw material size control and stable kiln feed, calcination temperature field control, cooling and waste heat utilization, and flue gas treatment organization. We provide integrated delivery from process design and packaged supply to commissioning and stable operation support for both new and retrofit projects.
Line composition
- Raw material receiving, screening and feeding
- Preheating and rotary kiln calcination system
- Cooling and lime discharge system
- Finished product conveying and storage
- Flue gas treatment and dust collection
- Electrical automation and central control
Core advantages
Maximum single-line capacity: 1500 t/d
Heat consumption: ≤1200 kcal/kg lime
Power consumption: ≤45 kWh/t-lime
Lime reactivity: ≥350 mL, up to 420 mL max. (4N HCl, 10 min titration)
Large-capacity continuous operation
Continuous process flow and stable lime supply suit large-scale lime users.
Stable quality
Activity, underburning, and overburning are more controllable, supporting downstream reaction and use.
Optimizable thermal efficiency
Preheating, cooling, and heat recovery paths are clear, making heat consumption more controllable.
Reliable environmental compliance
Well-organized dust control and emission treatment support stable compliance.
Applicable scenarios
Metallurgy, chemical industry, environmental desulfurization, building materials and related sectors.
Delivery scope
Process and multi-discipline engineering design, packaged equipment supply, installation, commissioning, ramp-up, compliance and O&M support, selected by project.
